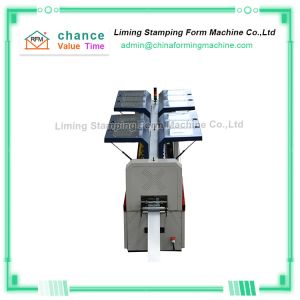

G550 Light Gauge Steel Framing Machines Z275 Coating

Wind-Proof Light Steel Villa Keel Forming Machine

Structural features of "Wind-proof Light Steel Villa Keel Forming Machine":

3. Wall structure

The wall of "Windproof Light Steel Villa Keel Forming Machine" is mainly composed of wall frame columns, wall top beams, wall bottom beams, wall brackets, wall panels and connectors.

"Wind-proof light steel villa keel forming machine" usually uses the internal transverse wall as the load-bearing wall of the structure. The pilasters are C-shaped light steel components. The wall thickness is determined according to the load, usually 0.84 to 2 mm, and the distance between wall posts is usually 400 to 600 mm.

The wall structure layout of the "Wind-proof Light Steel Villa Keel Forming Machine" can effectively bear and reliably transmit vertical loads, and the layout is convenient.

4. Building insulation and energy saving technology

In order to ensure the thermal insulation effect of the "wind and snow-proof light steel villa keel forming machine", the thermal insulation materials used in the exterior walls and roofs of buildings can be used for a long time and can be insulated.

In the "Wind-proof Light Steel Villa Keel Forming Machine", in addition to filling the glass fiber between the pilasters, a layer of insulation material is attached to the outside of the wall to effectively block the heat from the pilasters to the external wall panels. bridge. The joists between the floors are filled with glass fiber to reduce the heat transfer between the floors. All walls of the inner wall are filled with glass fiber to reduce heat transfer between the walls.

Technical parameters of Wind-Proof Light Steel Villa Keel Forming Machine

G550 Light Gauge Steel Framing Machines

Z275 Coating Light Gauge Steel Framing Machines

G550 light gauge steel framing machine

G550 Light Gauge Steel Framing Machines Z275 Coating Images
